一.產品介紹：
“協昌”研制的除塵器的箱壁連接器產品，避免了壓力氣管以焊接或螺栓連接通過除塵器箱壁，使操作簡單，密封可靠，安裝、維修方便。
二.結構特點：

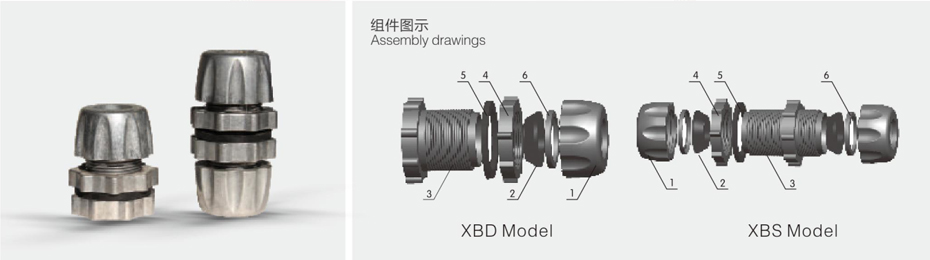

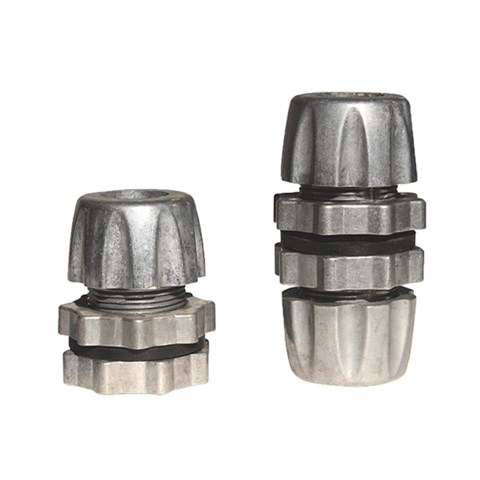

箱壁連接器分單頭螺母壓緊和雙頭螺母壓緊兩種結構形式。單頭螺母箱壁連接器，噴吹管可穿過箱壁連接器與脈沖閥排氣口連接，單螺母壓緊密封圈連接密封。雙頭螺母箱壁連接器，噴吹管插入箱壁連接器內側一端，通氣管插入箱壁連接器外側一端，兩端由螺母壓緊密封圈連接密封。箱壁連接器與直角電磁脈沖閥和專用活接頭配套，使用可靠，安裝維修方便。
|
序號 |
組件名稱 |
電磁脈沖閥型號 |
組件型號 |
|
|
XBD型箱壁連接器 |
XBS型箱壁連接器 |
|||
|
1 |
閥座壓緊螺母 |
DCF-ZM-20 |
DCF-ZM-20-2 |
DCF-ZM-20-2 |
|
DCF-ZM-25 |
DCF-ZM-25-2 |
DCF-ZM-25-2 |
||
|
DCF-ZM-40S |
DCF-ZM-40-2 |
DCF-ZM-40-2 |
||
|
2 |
閥座密封圈 |
DCF-ZM-20 |
DCF-ZM-20-3 |
DCF-ZM-20-3 |
|
DCF-ZM-25 |
DCF-ZM-25-3 |
DCF-ZM-25-3 |
||
|
DCF-ZM-40S |
DCF-ZM-40-3 |
DCF-ZM-40-3 |
||
|
3 |
箱壁連接器本體 |
DCF-ZM-20 |
XC-XBD-20.1 |
XC-XBS-20.1 |
|
DCF-ZM-25 |
XC-XBD-25.1 |
XC-XBS-25.1 |
||
|
DCF-ZM-40S |
XC-XBD-40.1 |
XC-XBS-40.1 |
||
|
4 |
箱壁壓緊螺母 |
DCF-ZM-20 |
XC-XBD-20.2 |
XC-XBD-20.2 |
|
DCF-ZM-25 |
XC-XBD-25.2 |
XC-XBD-25.2 |
||
|
DCF-ZM-40 |
XC-XBD-40.2 |
XC-XBD-40.2 |
||
|
5 |
箱壁密封墊 |
DCF-ZM-20 |
XC-XBD-20.3 |
XC-XBD-20.3 |
|
DCF-ZM-25 |
XC-XBD-25.3 |
XC-XBD-25.3 |
||
|
DCF-ZM-40S |
XC-XBD-40.3 |
XC-XBD-40.3 |
||
|
6 |
碗型密封圈（一） |
DCF-ZM-20 |
DCF-ZM-20.4 |
DCF-ZM-20.4 |
|
DCF-ZM-25 |
DCF-ZM-25.4 |
DCF-ZM-25.4 |
||
|
DCF-ZM-40S |
DCF-ZM-40.4 |
DCF-ZM-40.4 |
||
